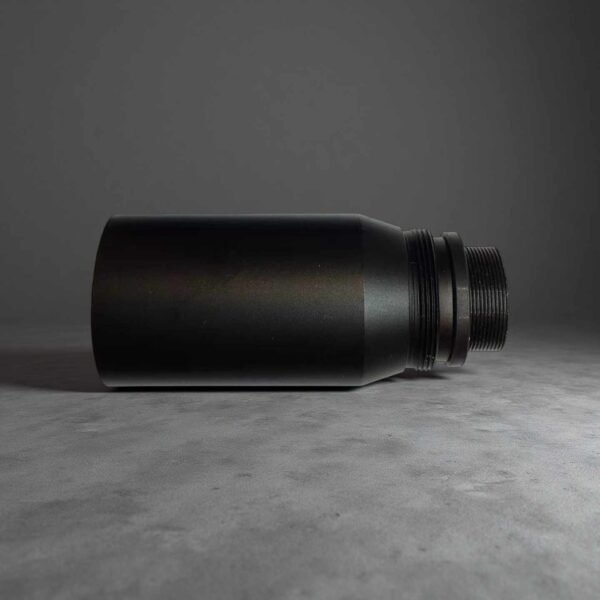

Compact BeamLens Pro D25/M22 Series

Primary Product Name:
Compact BeamLens Pro D25/M22 Series

Model Numbering Example:
BeamLens Pro-3X-532-M22

(This clearly indicates the product family, magnification, primary wavelength, and thread type.)

2. Product Detail Page Design Framework

1. Core Headline & Value Proposition

“BeamLens Pro D25/M22: Compact Power, Scalable Performance”
A miniature beam expander/reducer designed for integration into space-constrained systems. Offering a wide range of off-the-shelf magnifications from 1.2X to 12X for precise beam control across visible and NIR spectra.

2. Key Features (Icon-Based Presentation)

• Wide Magnification Range

  • Icon: 📈

  • Text: Choose from 1.2X, 1.5X, 2X, 2.5X, 3X, 4X, 6X, 10X, to 12X. Standard stock availability for rapid deployment.

• Compact & Robust Design

  • Icon: 🔩

  • Text: Features a compact 45mm length with a standard M22x0.75 thread for easy and secure integration into OEM systems.

• Broad Spectral Compatibility

  • Icon: 🌈

  • Text: Optimized for two primary bands: Visible (400-700nm) and Near-IR (800-1100nm), covering a wide array of laser sources.

• High-Quality Optics

  • Icon: ⚡

  • Text: Utilizes precision 16mm (input) and 20mm (output) lenses, ensuring high throughput and minimal wavefront distortion.

3. Detailed Product Specifications Table

4. Application Scenarios (Visual Showcase)

• Scenario 1: Laser Scanning & LiDAR

  • Visual Suggestion: Diagram of a beam expanding before a scanning galvanometer.

  • Caption: “Reduce divergence for improved long-range resolution in scanning and ranging systems.”

• Scenario 2: Microscopy & Bio-Imaging

  • Visual Suggestion: A beam entering a microscope objective.

  • Caption: “Precisely size your beam to overfill microscope objectives for optimal resolution and confocal performance.”

• Scenario 3: Material Processing

  • Visual Suggestion: Close-up of a laser engraving a fine pattern.

  • Caption: “Control spot size and depth-of-field for precision in micro-machining and marking applications.”

5. Call to Action & Ordering Information

Title: Select Your Configuration

Text: “Browse our standard magnifications in stock. Require a different magnification? Please contact our support team for custom solutions.”

Configuration Note: “When ordering, please specify your desired Magnification and primary Operating Wavelength.”

This structure ensures all technical details are clear while marketing the product’s versatility and compact advantage effectively.
