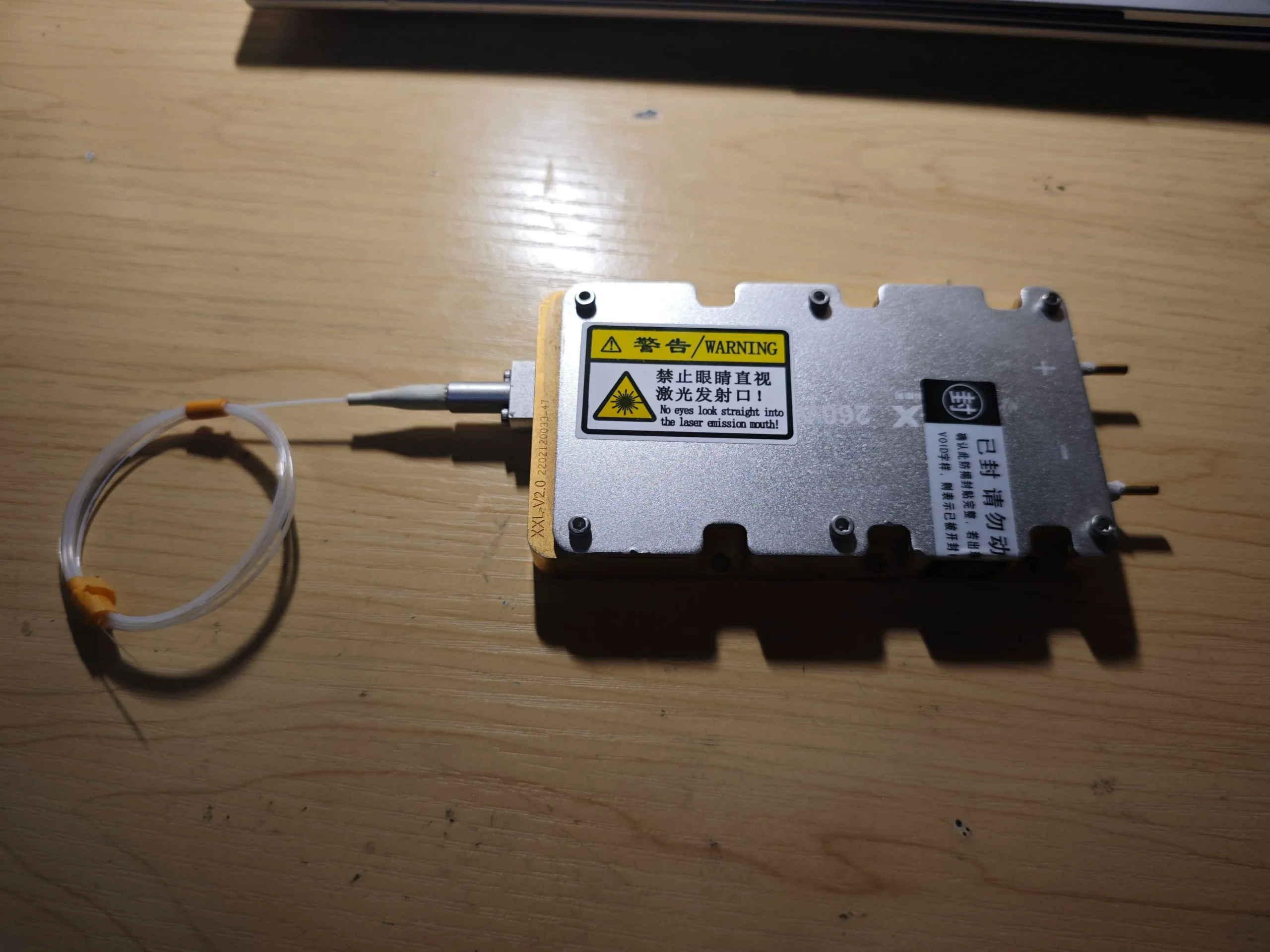

CHUANGXIN New Generation 260W Extended-Range Infrared Laser Module – 24V Ultra-Light Laser System
11
People watching this product now!
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Price range: $108.00 through $400.00
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
The CHUANGXIN New Generation 260W Extended-Range Infrared Laser Module represents a significant advancement in portable high-power laser technology. Operating at 24V for enhanced efficiency and safety, this ultra-lightweight “laser cannon” system delivers 260W of infrared power in a remarkably compact form factor. Designed for applications requiring both high power output and exceptional portability, this module features improved thermal management, extended operational range, and optimized power delivery for field and mobile applications.
Technical Specifications
| Core Performance | Electrical System | Physical Design |
|---|---|---|
| Output Power: 260W Continuous Wave | Operating Voltage: 24V DC (Enhanced Efficiency) | Dimensions: 180mm × 120mm × 50mm |
| Wavelength: 915nm ± 3nm (Infrared) | Operating Current: 12A Maximum | Weight: 1.8 kg (Complete Module) |
| Beam Quality: M² < 20 | Power Consumption: 320W Electrical Input | Volume Reduction: 40% vs Previous Generation |
| Power Density: 1.44 W/cm³ (Module) | Driver Compatibility: Standard 24V Constant Current | Power-to-Weight Ratio: 144 W/kg |
| Efficiency: > 45% Wall-Plug Efficiency | Control Interface: 0-5V Analog / PWM / CAN Bus | Housing: Advanced Polymer Composite |
| Spectral Width: < 4nm FWHM | Safety Features: Multi-layer Protection Circuit | Heat Sink: Integrated Phase Change Material |
| Output Options: Bare Output or Fiber-Coupled | Input Protection: Reverse Polarity, Over-voltage | Mounting: Universal Quick-Release Brackets |
| Fiber Compatibility: 200/220μm Standard | Response Time: < 50ms Full Power Ramp | Connectors: IP67 Waterproof Industrial Grade |
| Extended Range Features | Thermal Management | Reliability Metrics |
|---|---|---|
| Enhanced Cooling: Micro-channel Heat Exchange Technology | Maximum Case Temperature: 55°C (Extended Range) | MTBF: > 30,000 Hours |
| Voltage Optimization: 24V Operation Reduces Current Requirements | Thermal Capacity: 50% Improvement Over Previous Models | Lifetime: > 20,000 Operational Hours |
| Power Stability: < ±2.5% Over Full Temperature Range | Cooling Requirement: Active Air or Passive Liquid | Warranty: 18 Months Comprehensive |
| Beam Consistency: Improved Across Operational Envelope | Heat Dissipation: 150W at Full Power | Quality Grade: Military-Grade Components |
| Range Extension: 15-20% Increased Effective Working Distance | Operating Ambient: -10°C to 45°C Extended | Environmental Rating: IP54 Standard |
| Atmospheric Compensation: Optimized for Various Environmental Conditions | Storage Temperature: -20°C to 60°C | Vibration Resistance: 5g RMS Operating |
| Modulation Enhancement: Up to 100kHz with Minimal Distortion | Humidity Tolerance: 5-95% Non-Condensing | Shock Resistance: 50g Peak Survival |
Innovation Features
| Next-Generation Technology | Performance Enhancements | User Experience Improvements |
|---|---|---|
| 24V Power Architecture: Lower current reduces losses and heating | Power Density Increase: 30% more power in same volume | Reduced Weight: 35% lighter than equivalent power modules |
| Advanced Thermal Interface: Phase change materials for peak heat transfer | Extended Temperature Range: Reliable operation in harsh environments | Simplified Installation: Tool-less mounting system |
| Intelligent Power Management: Dynamic adjustment for optimal efficiency | Improved Beam Quality: Better focusability and energy concentration | Enhanced Connectivity: Standardized industrial interfaces |
| Compact Driver Integration: Reduced external component requirements | Faster Response: Quicker modulation and power adjustment | Clear Status Indicators: Multi-color LED operation feedback |
| Material Science: Advanced composites for strength and thermal properties | Increased Reliability: Redundant critical systems | Maintenance Access: Easy service points and component replacement |
| Modular Design: Scalable for different power requirements | Consistent Performance: Reduced degradation over time | Safety Integration: Built-in protective features |
| Energy Recovery: Recaptured energy from modulation transitions | Wider Compatibility: Works with broader range of drivers | Documentation: Comprehensive digital and printed materials |
| Application-Specific Optimizations | System Integration Advantages | Quality & Durability Features |
|---|---|---|
| Portable Systems: Optimized for battery-powered applications | Plug-and-Play Compatibility: Standard 24V industrial ecosystems | Environmental Testing: MIL-STD-810G compliance |
| Field Operations: Enhanced environmental resistance | Reduced Wiring: Lower current allows smaller gauge cables | Component Screening: 100% tested critical components |
| Robotic Integration: Lightweight for dynamic systems | Heat Management: Simplified cooling requirements | Accelerated Life Testing: Validated reliability |
| Aerospace Applications: High power-to-weight ratio | Control Simplicity: Standard industrial protocols | Manufacturing Standards: ISO 9001 certified production |
| Medical Equipment: Clean, reliable power delivery | Safety Systems: Easier integration with machine safety | Traceability: Full component and assembly tracking |
| Research Instruments: Stable, precise power source | Monitoring: Built-in diagnostic and reporting capabilities | Continuous Improvement: Feedback-driven design updates |
SKU Configuration Matrix
| Power & Voltage Variants | Optical Output Options | Complete System Packages |
|---|---|---|
| SKU-CX-260W-24V: Standard 260W, 24V Module | SKU-OUT-BARE: Direct Bare Output Configuration | SKU-SYS-BASIC: Module + Basic Mounting + Cables |
| SKU-CX-200W-24V: Lower Power 200W Version | SKU-OUT-FIBER-200: 200μm Fiber Coupled Output | SKU-SYS-PRO: Complete with Driver + Cooling + Controls |
| SKU-CX-320W-24V: Higher Power 320W Model | SKU-OUT-FIBER-400: 400μm High Power Fiber | SKU-SYS-PORTABLE: Battery Pack + Charger + Case |
| SKU-CX-260W-48V: 48V Version for Specific Applications | SKU-OUT-COLLIMATED: Integrated Collimation Optics | SKU-SYS-INDUSTRIAL: Full Enclosure + Safety + Monitoring |
| Specialized Configurations | Accessory Components | Control & Interface Options |
|---|---|---|
| SKU-CONF-PORTABLE: Ultra-Light Field Configuration | SKU-ACC-MOUNT: Quick-Release Mounting System | SKU-CTRL-ANALOG: Simple 0-5V Control Interface |
| SKU-CONF-INDUSTRIAL: Heavy-Duty Industrial Version | SKU-ACC-COOLING: Enhanced Active Cooling Kit | SKU-CTRL-DIGITAL: PWM/CAN Bus Digital Control |
| SKU-CONF-RESEARCH: Laboratory Precision Grade | SKU-ACC-POWER: 24V Regulated Power Supply | SKU-CTRL-ETHERNET: Network-Enabled Control Module |
| SKU-CONF-MILITARY: Ruggedized Environmental Package | SKU-ACC-CARRY: Professional Transport Case | SKU-CTRL-WIRELESS: Bluetooth/WiFi Control Option |
Applications & Performance
| Portable High-Power Systems | Industrial Integration | Specialized Field Applications |
|---|---|---|
| Mobile Cutting and Welding Units | Robotic Material Processing Systems | Military and Defense Equipment |
| Field Repair and Maintenance Tools | Automated Manufacturing Workcells | Emergency Response Cutting Tools |
| Remote Construction and Fabrication | 3D Printing and Additive Manufacturing | Aerospace Field Service Equipment |
| On-Site Manufacturing Operations | Quality Control and Inspection Systems | Oil and Gas Industry Maintenance |
| Mobile Artistic and Display Systems | Packaging and Marking Equipment | Scientific Research Field Instruments |
| Performance Comparison | Previous Generation | New Generation 260W | Improvement |
|---|---|---|---|
| Power-to-Weight Ratio | 100 W/kg | 144 W/kg | +44% |
| Operating Temperature Range | 0°C to 40°C | -10°C to 45°C | +15°C Extension |
| Power Stability | ±5% | ±2.5% | 50% Improvement |
| Response Time | 100ms | 50ms | 2x Faster |
| Efficiency | 40% | 45%+ | +12.5% |
| Environmental Rating | IP40 | IP54 | Enhanced Protection |
| Modulation Bandwidth | 50kHz | 100kHz | 2x Bandwidth |
| Expected Lifetime | 15,000 hours | 20,000+ hours | +33% |
Installation & Operation
| System Requirements | Power Supply Specifications | Cooling Implementation |
|---|---|---|
| 24V Constant Current Driver (15A Minimum) | Voltage Stability: < 2% Ripple | Active Air Cooling: 200 CFM Minimum |
| Adequate Mounting Surface with Thermal Path | Current Regulation: < 1% Variation | Passive Liquid: 0.5 L/min Flow Rate |
| Appropriate Safety Enclosure for Class 4 Laser | Soft-Start Capability: Recommended | Phase Change Material: Self-contained Operation |
| Infrared Viewing Equipment (Camera or Sensor) | Protection: Over-current, Over-temperature | Monitoring: Temperature Sensors Included |
| Personal Protective Equipment | Efficiency: > 90% Recommended | Maintenance: Regular Cleaning of Heat Exchange Surfaces |
| Adequate Ventilation for Heat Dissipation | Input Filtering: EMI/RFI Suppression | Environmental: Consider Ambient Conditions |
| Fire Safety Equipment | Redundancy: Optional Backup Systems | Performance: Monitor for Degradation Over Time |
| Optimization Guidelines | Maintenance Schedule | Troubleshooting Protocol |
|---|---|---|
| Thermal Interface: Use recommended thermal compounds | Daily: Visual Inspection and Temperature Check | Low Power Output: Verify Thermal Management |
| Mounting Pressure: Apply specified torque for optimal heat transfer | Weekly: Clean Optical and Cooling Surfaces | Overheating: Improve Cooling or Reduce Duty Cycle |
| Cable Selection: Appropriate gauge for 12A current | Monthly: Electrical Connection Verification | Connection Issues: Check Connectors and Cables |
| Environmental Control: Maintain within specified temperature range | Quarterly: Performance Calibration Check | Control Problems: Verify Interface and Settings |
| Alignment: Ensure optimal beam delivery path | Semi-Annual: Complete System Diagnostics | Fiber Damage: Inspect for Bends or Breaks |
| Monitoring: Implement temperature and power tracking | Annual: Professional Service and Calibration | Driver Compatibility: Confirm Specifications Match |
| Safety Systems: Regular testing of interlocks and emergency stops | Predictive: Based on Operational Hours Log | Environmental Factors: Consider Temperature and Humidity |
Technical Support & Services
| Documentation Package | Warranty Coverage | Professional Services |
|---|---|---|
| Complete Technical Manual | 18-Month Comprehensive Warranty | Application Engineering Consultation |
| Performance Certification Documents | Defective Component Replacement | System Integration Support |
| Safety Compliance Documentation | Repair Services with Expedited Options | Custom Configuration Development |
| Installation and Integration Guide | Extended Warranty Plans Available | On-Site Installation and Commissioning |
| Maintenance and Service Manual | Priority Technical Support Access | Training Programs for Operators |
| Application Notes and Best Practices | Software and Firmware Updates | Performance Optimization Services |
| Regulatory Submission Support | Spare Parts Inventory Management | Ongoing Technical Support |
| Quality Assurance Program | Testing & Validation | Compliance & Certification |
|---|---|---|
| ISO 9001 Certified Manufacturing | Each Unit Full Power Characterization | CE Marking for European Market |
| 100% Unit Functional Testing | Environmental Stress Testing | FCC Part 15 Emissions Compliance |
| Burn-in Testing (48 Hours Minimum) | Reliability and Lifetime Validation | RoHS/REACH Material Compliance |
| Component Traceability System | Beam Quality and Stability Verification | Laser Safety Class 4 Certification |
| Statistical Process Control | Modulation and Response Testing | International Safety Standards |
| Customer Feedback Integration | Real-World Application Testing | Industry-Specific Certifications |
| Continuous Improvement Process | Comparative Performance Analysis | Export Compliance Documentation |
Package Contents
| Standard Configuration Includes: | Optional Accessories: | Digital Resources Package: |
|---|---|---|
| CHUANGXIN 260W 24V Laser Module | Enhanced Cooling System | Digital Technical Manual |
| Quick-Release Mounting Bracket Set | Professional Transport Case | Control Software Suite |
| Basic Electrical Connection Cables | Additional Fiber Optic Configurations | Mobile Application for Monitoring |
| Thermal Interface Material | Power Supply Unit (24V, 15A) | Video Tutorial Library |
| Safety and Operation Manual | Advanced Control Interface Module | Firmware Update Files |
| Performance Test Certificate | Protective Enclosure Components | Application Note Database |
| Warranty and Support Information | Calibration and Test Equipment | Integration Guidelines |
| Quick Start Installation Guide | Extended Range Optics Package | Troubleshooting Guide |
Critical Usage Considerations:
-
24V constant current power supply mandatory – verify compatibility before connection
-
Adequate thermal management essential – monitor temperatures during operation
-
Professional installation recommended – technical expertise required for optimal setup
-
Regular maintenance schedule – particularly cooling system and optical components
-
Safety compliance – Class 4 laser requires appropriate engineering and administrative controls
-
Performance optimization – proper calibration enhances efficiency and extends lifespan
-
Environmental considerations – operation within specified temperature and humidity ranges
-
Training requirements – ensure operators understand both capabilities and limitations
For application-specific requirements, system integration challenges, or custom configuration needs, our engineering team provides comprehensive technical support from initial design through deployment and ongoing operation.
