Description

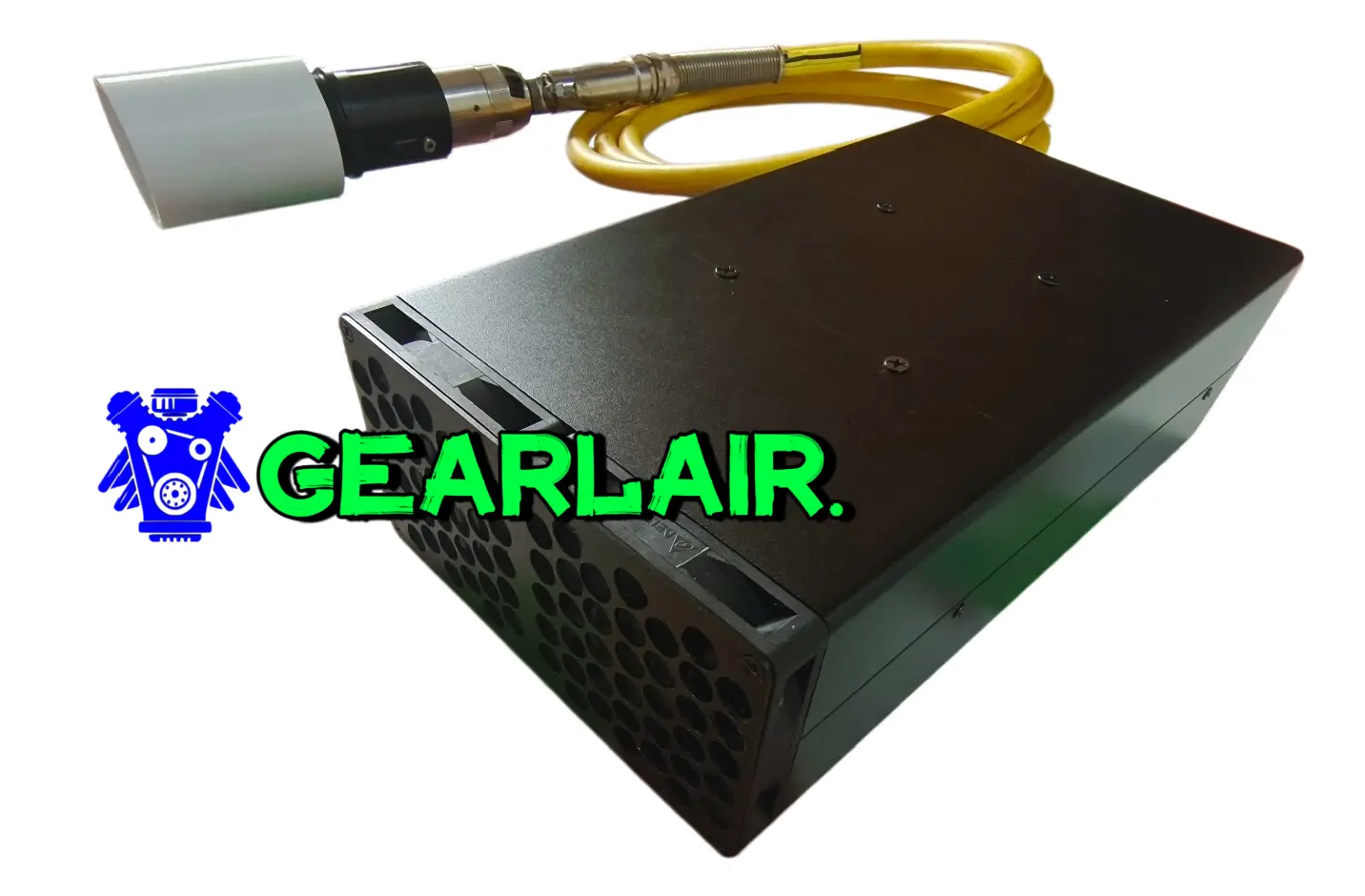

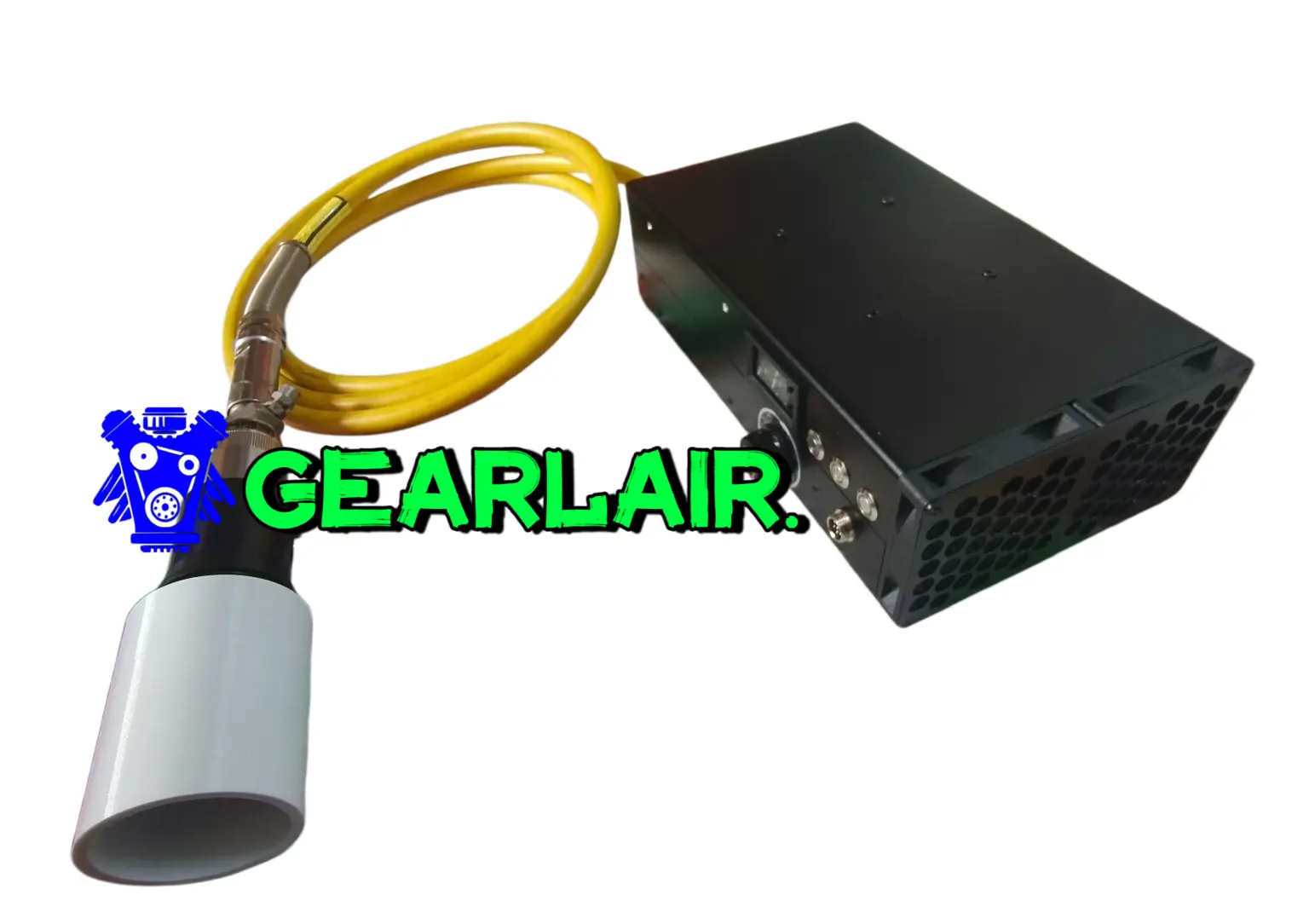

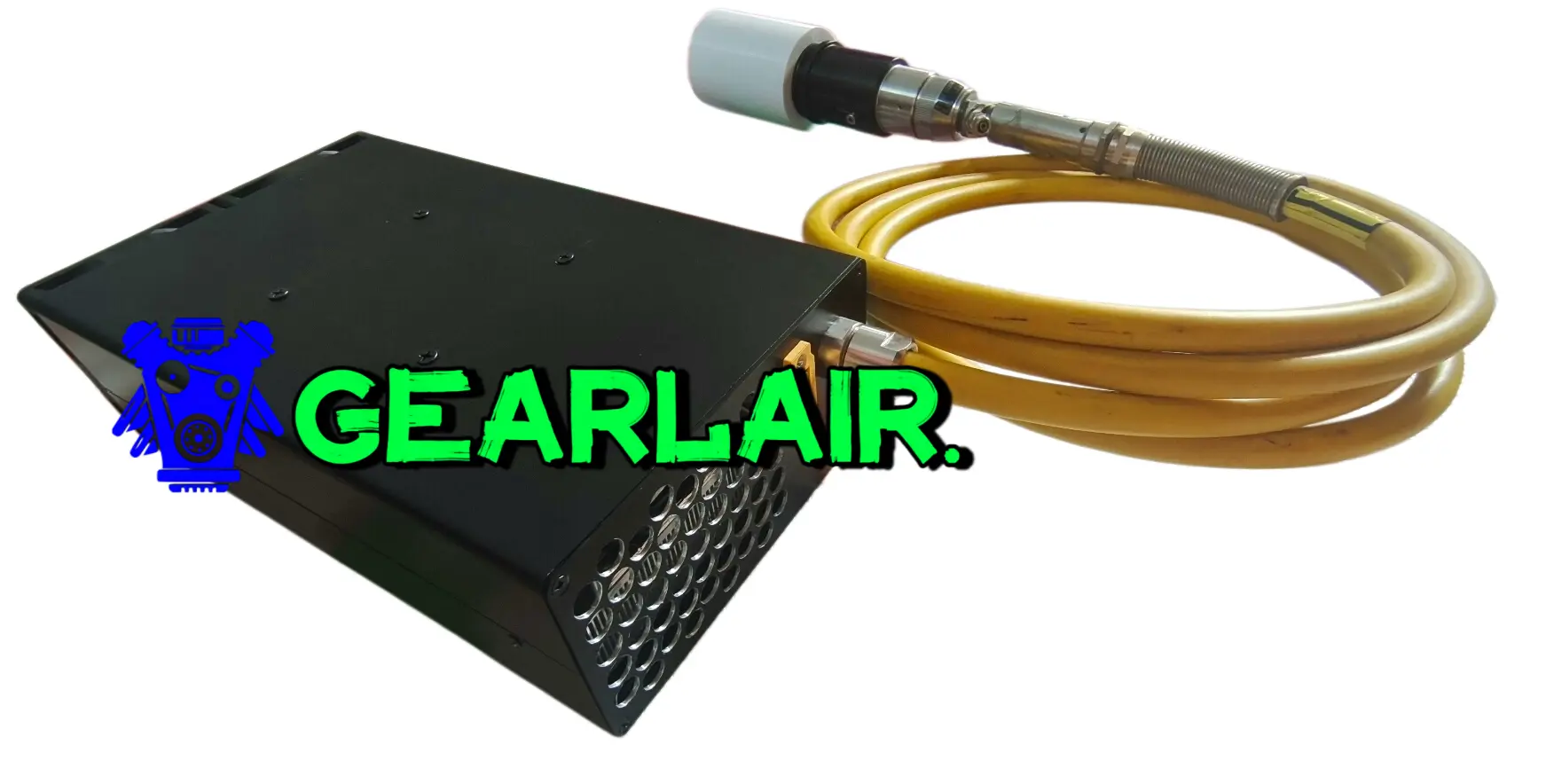

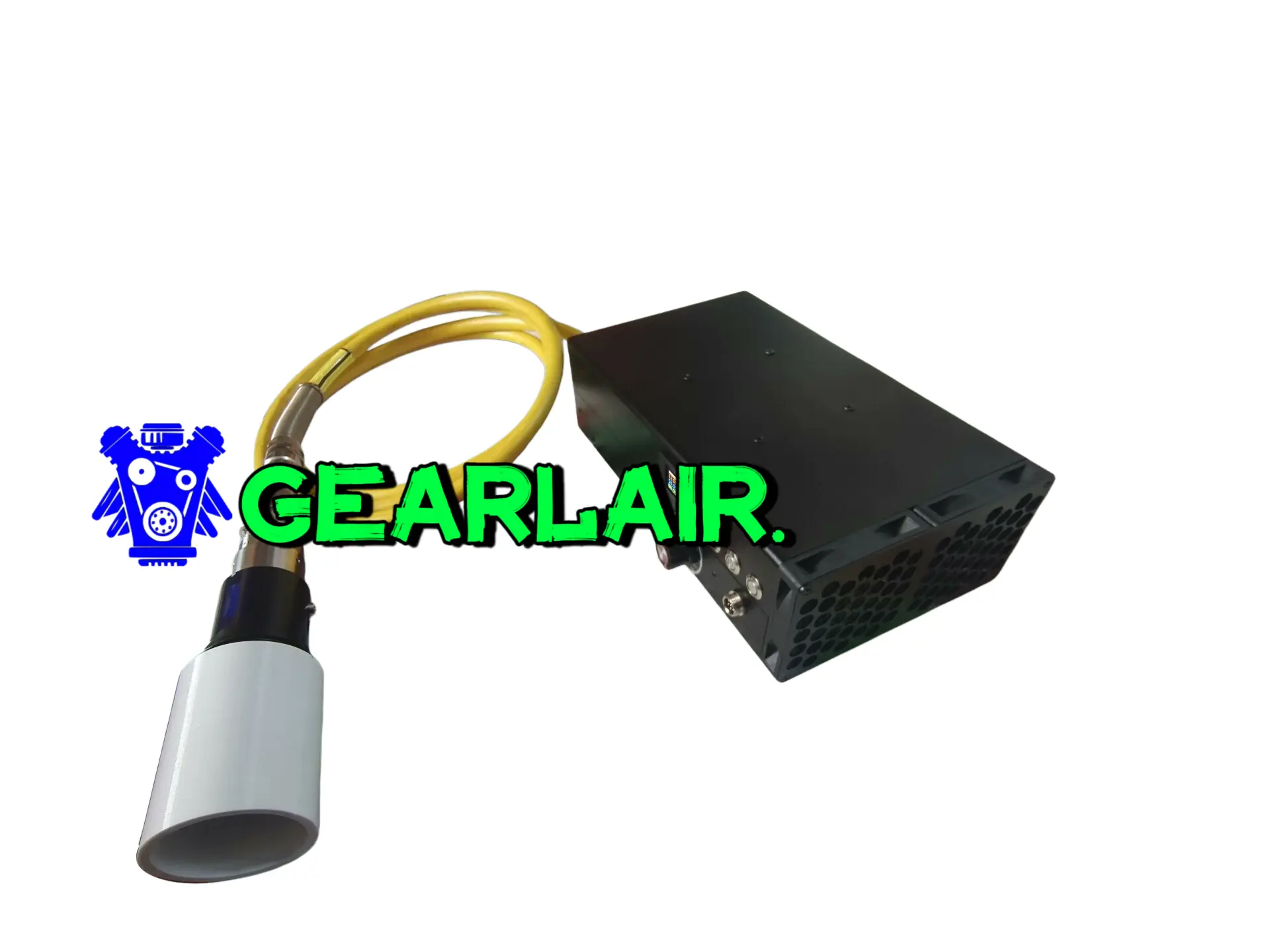

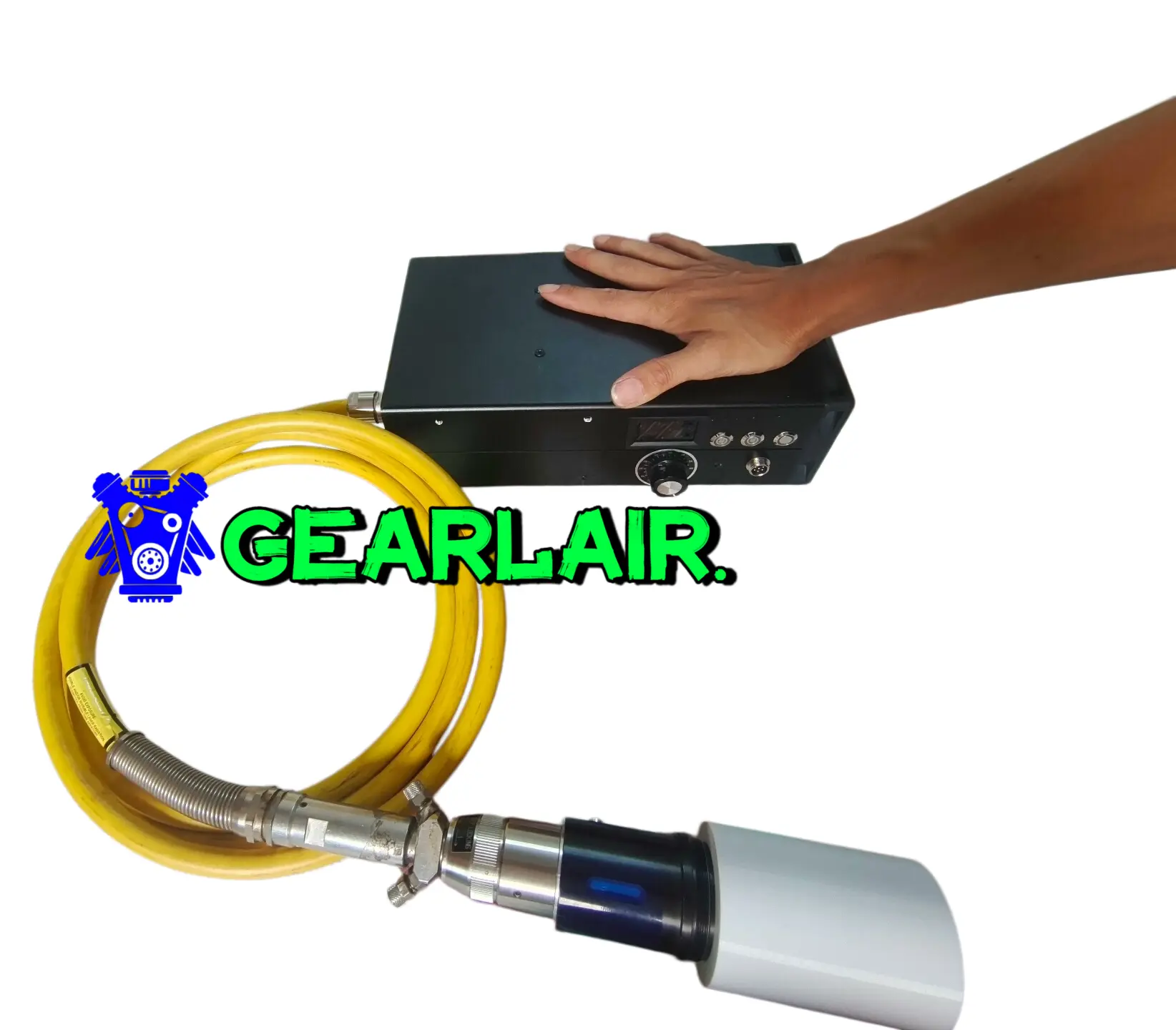

HT-600 600W Industrial Laser Cleaning & Obstacle Removal System
🔥 KEY FEATURES: 600W Power · 340m Remote Operation · Non-Contact Removal · Designed for High-Voltage Power Line Maintenance
Overview
The HT-600 is an industrial-grade laser de-obstruction device specifically engineered for high-voltage power line maintenance. Integrating advanced pulsed laser technology, it enables efficient obstacle removal from a safe distance of up to 340 meters—fundamentally transforming traditional high-risk manual cleaning methods.
Key Advantages
🔹 Ultra-Long Range Operation
Effective working distance up to 340 meters
Effective working distance up to 340 meters
🔹 Non-Contact Removal
Operates without touching live lines—maximum safety
Operates without touching live lines—maximum safety
🔹 Multi-Scenario Application
Kites, plastic sheets, bird nests, wasp nests, small branches
Kites, plastic sheets, bird nests, wasp nests, small branches
🔹 Precision Control
Exceptional beam quality (M² ≤ 1.2) for accurate targeting
Exceptional beam quality (M² ≤ 1.2) for accurate targeting

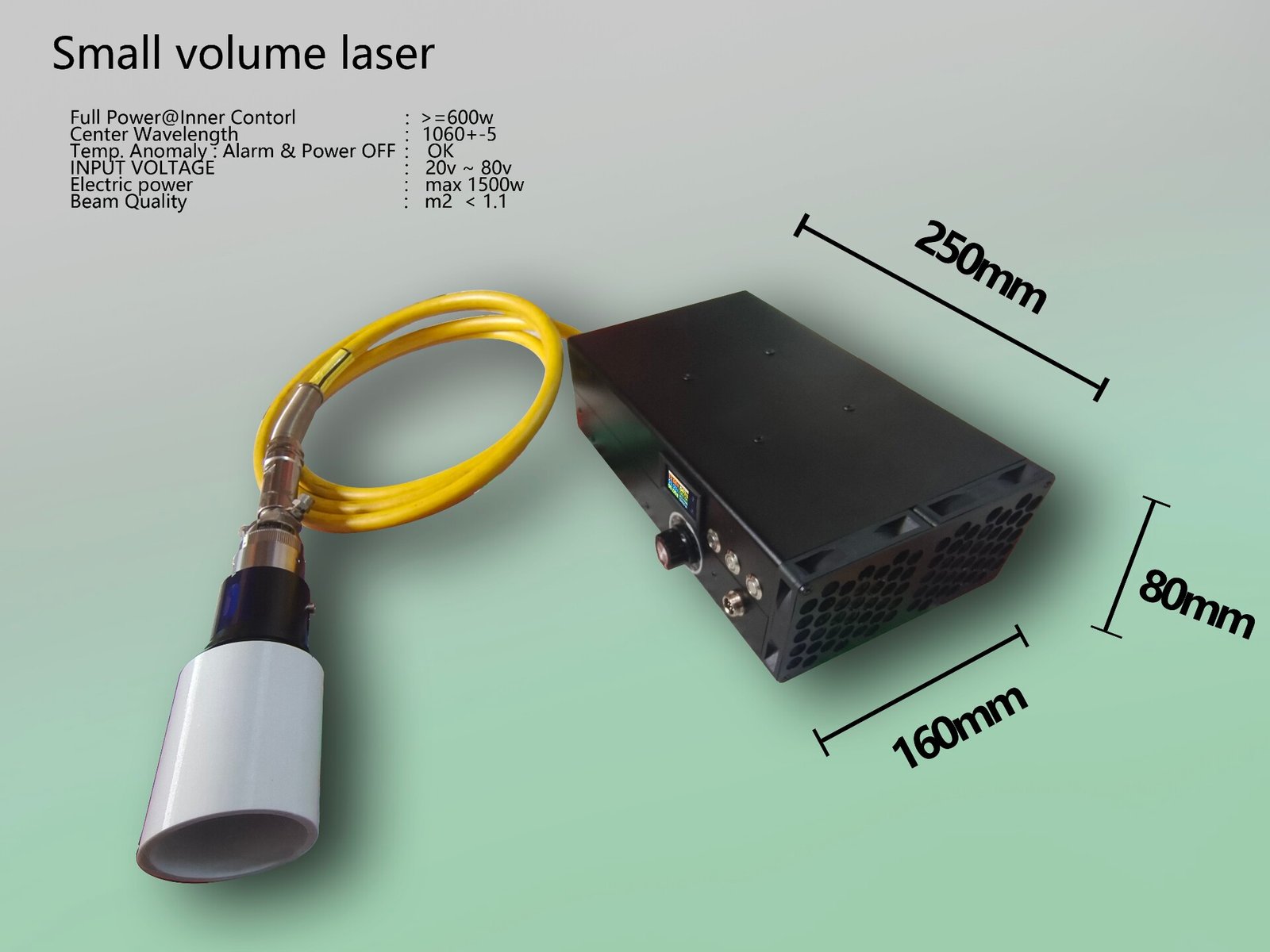

Technical Specifications
Laser System Parameters
| Output Power | 600W Adjustable |
| Operating Wavelength | 1064nm Infrared Band |
| Fiber Core Diameter | 50μm High Transmission Efficiency |
| Beam Quality | M² ≤ 1.2 (Near-Diffraction-Limited) |
| Modulation Mode | Pulse Modulation, Adjustable Frequency |
Power & Electrical Parameters
| Input Voltage | DC 45V ~ 80V Wide Voltage Design |
| Input Interface | XT60 Industrial Connector |
| Maximum Current | 30A |
| Power Display | Real-time monitoring of Voltage/Current/Power Consumption |
Physical & Operational Parameters
| Display System | Multi-function Display (Voltage, Current, Power, Temperature) |
| Power Adjustment | Rotary Knob for Stepless Adjustment (Clockwise to Increase) |
| Cooling System | High-Efficiency Air Cooling with Dedicated Air Duct |
| Operating Temperature | -10°C ~ 45°C |
Core Applications
High-Voltage Power Line Intelligent De-obstruction
- 340m Remote Removal: Operator works from an absolutely safe position
- Multiple Obstacle Types:
- Kite strings, plastic films: 3-5 seconds clearance
- Bird nests, wasp nests: 10-30 seconds disintegration
- Hanging debris: precise severing of attachment points
- Small Branch Cutting: Can cut branches up to 2cm in diameter within 50 meters
Note: Must be paired with a high-precision PTZ gimbal system for precise aiming.
Industrial Fabric Cutting (Requires Modification)
- Modification Required: Replace beam expander lens with focusing lens
- Suitable Materials: Canvas, tarpaulin, industrial fabrics
- Cutting Feature: Non-contact cutting with automatically sealed edges (no fraying)
Operation Guide

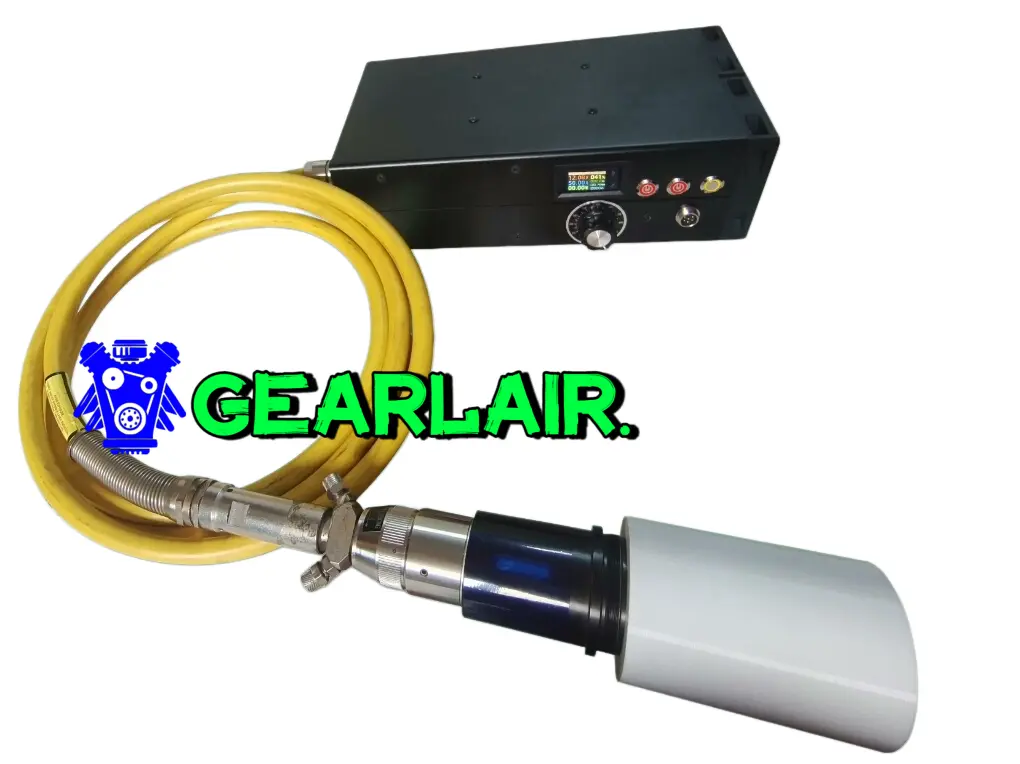

Control Panel Layout
- Power Switch: Main system power
- Indicator Switch: Status indicator control
- Pulsed Laser Switch: Activates laser emission
- Display Screen: Shows real-time operating data
- Power Regulator Knob: Stepless power adjustment
- Cooling Air Duct Outlet: For heat dissipation

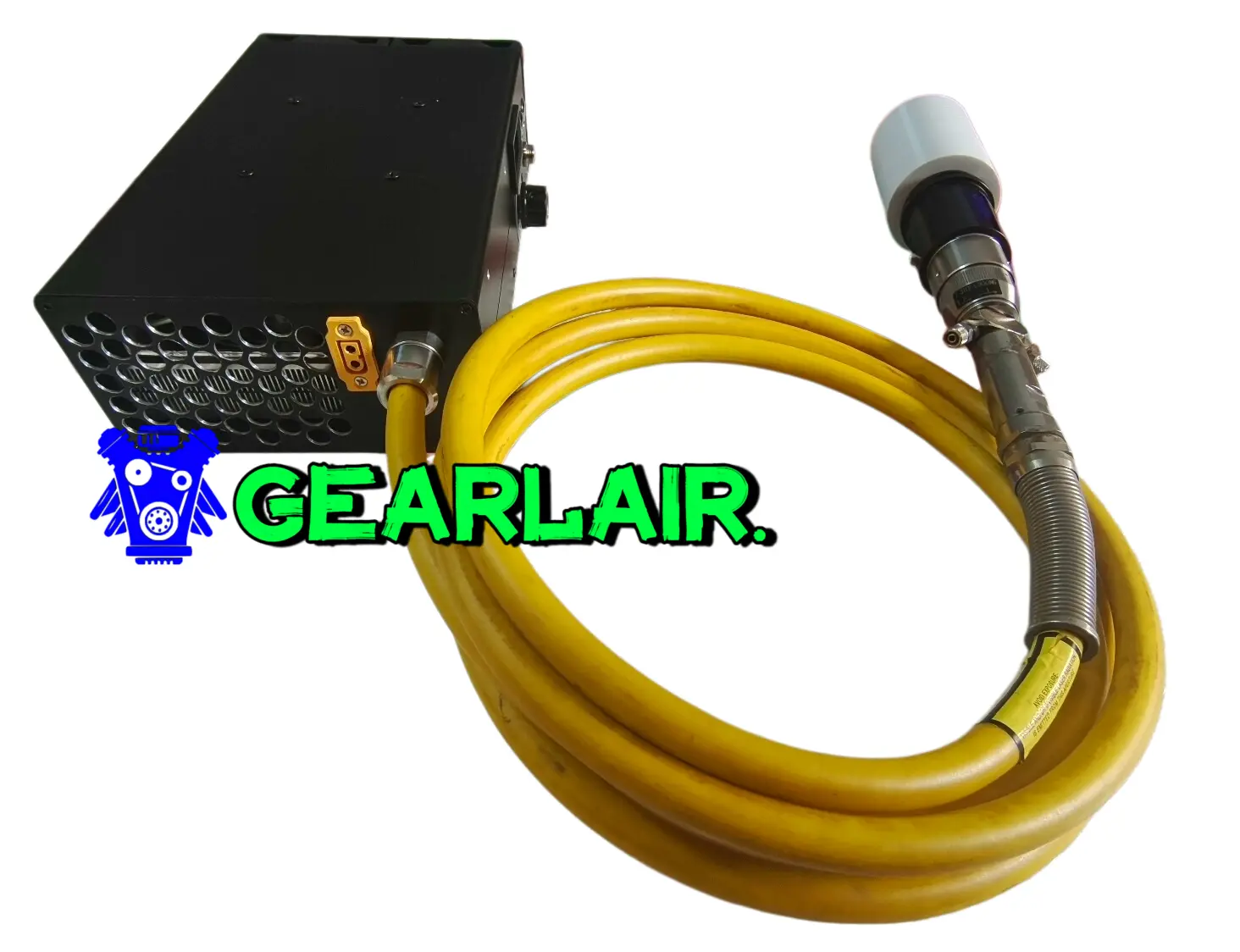

- DC Power Input Port (XT60): Connect 48V-80V, 30A DC power supply
Quick-Start Workflow
- Connect DC power source (48-80V) to the XT60 input port
- Mount the device onto the compatible high-precision PTZ gimbal
- Turn on the Power Switch and Indicator Switch
- Use the PTZ system to aim the laser at the target obstacle
- Gradually turn the Power Regulator Knob clockwise to the desired level
- Press and hold the Pulsed Laser Switch to engage the laser. Monitor parameters on the display
⚠️ CRITICAL LASER SAFETY WARNINGS
DANGER – INVISIBLE LASER RADIATION: The 1064nm wavelength is invisible to the human eye.
- NEVER point the device at people, animals, vehicles, buildings, or any unintended targets
- All operators must wear appropriate Laser Safety Glasses designed for 1064nm
- Establish a controlled work zone during operation
Package Contents
- HT-600 Laser Main Unit × 1
- Standard Beam Expander Lens (for de-obstruction) × 1
- DC Power Input Cable (XT60 connector) × 1
- Basic Operation Manual × 1
- Safety Warning Labels × 1 set
Optional: Focusing Lens (for fabric cutting) – sold separately
Required: Compatible High-Precision PTZ Gimbal System – sold separately
Target Industries
- Electric Power Utilities: Transmission & distribution line maintenance
- Railway Operations: Clearing obstacles near catenary wires
- Telecom Infrastructure: Maintaining microwave and communication tower lines
- Industrial Cleaning Services: Remote cleaning solutions
- Municipal Services: Removing hazardous debris from public infrastructure
