High-Precision PWM-Controlled Laser Driver Module for RAYCUS, CREATOR & IPG Laser Systems

Product Overview

The RAYCUS, CREATOR, and IPG Laser Pump Driver Module is a specialized, high-performance power control solution designed for professional-grade laser cutting, engraving, and material processing systems. Engineered to deliver precise, stable power output to semiconductor laser sources, this driver module enables seamless conversion of CO₂ laser machines into more efficient semiconductor laser systems. With support for multiple control interfaces including PWM, 0-10V analog, and manual switching, it provides versatile integration options for both DIY enthusiasts and industrial applications.

Key Features

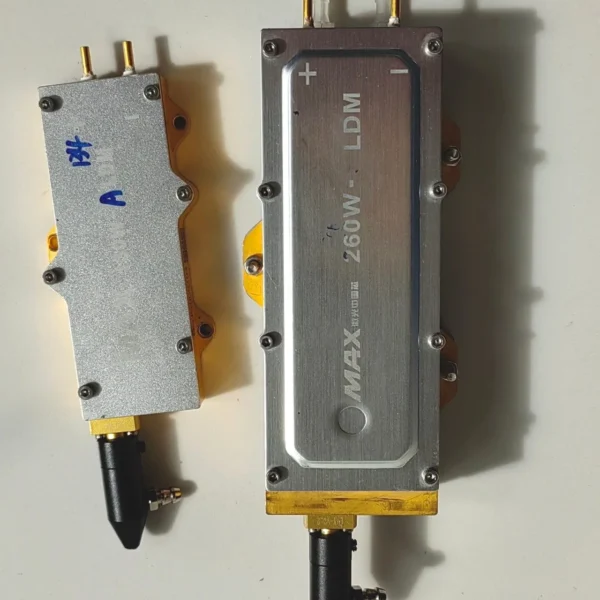

• Universal Compatibility: Compatible with RAYCUS, CREATOR, IPG, and other major laser pump brands.

• Multi-Interface Control: Supports PWM frequency generator control (up to 100 kHz), 0-10V voltage/PWM control, and manual/foot-switch single-button control.

• Constant Current/Voltage Output: Provides stable DC power directly to laser positive/negative terminals.

• Robust Aluminum Housing: 1.5mm thick aluminum alloy enclosure ensures excellent heat dissipation and structural durability.

• Integrated +5V Auxiliary Output: Supplies power to PWM signal generators and control circuits (not for load use).

• Direct CO₂ Laser System Upgrade: Enables cost-effective conversion of existing CO₂ laser engraving/cutting machines to semiconductor laser sources.

Technical Specifications

Electrical Parameters:

• 130W Laser Compatibility: 24V / 20A

• 260W Laser Compatibility: 48V / 20A

• 400W+ Laser Compatibility: Compatible with higher power systems (specific configurations available)

• PWM Input Frequency: Up to 100 kHz

• Control Voltage Range (ON/OFF): 1-12V DC (positive voltage = ON, negative/ground = OFF)

• Auxiliary Voltage Output: +5V DC (for signal generator power only)

• Signal Ground (GND): Common return for all control signals

Physical Specifications:

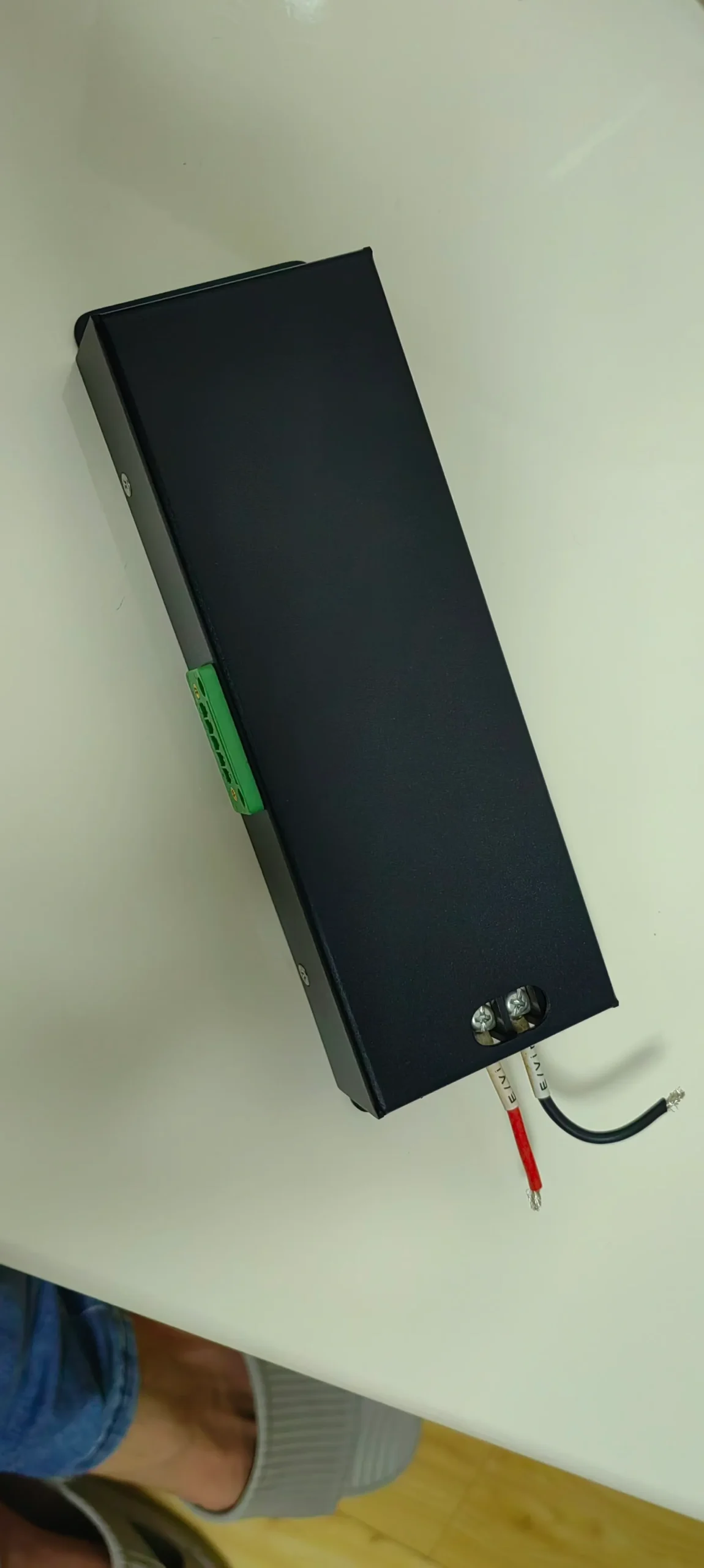

• Enclosure Material: 1.5mm aluminum alloy

• Cooling Method: Water-cooled design (compatible with transparent acrylic water channels mounted on aluminum plate)

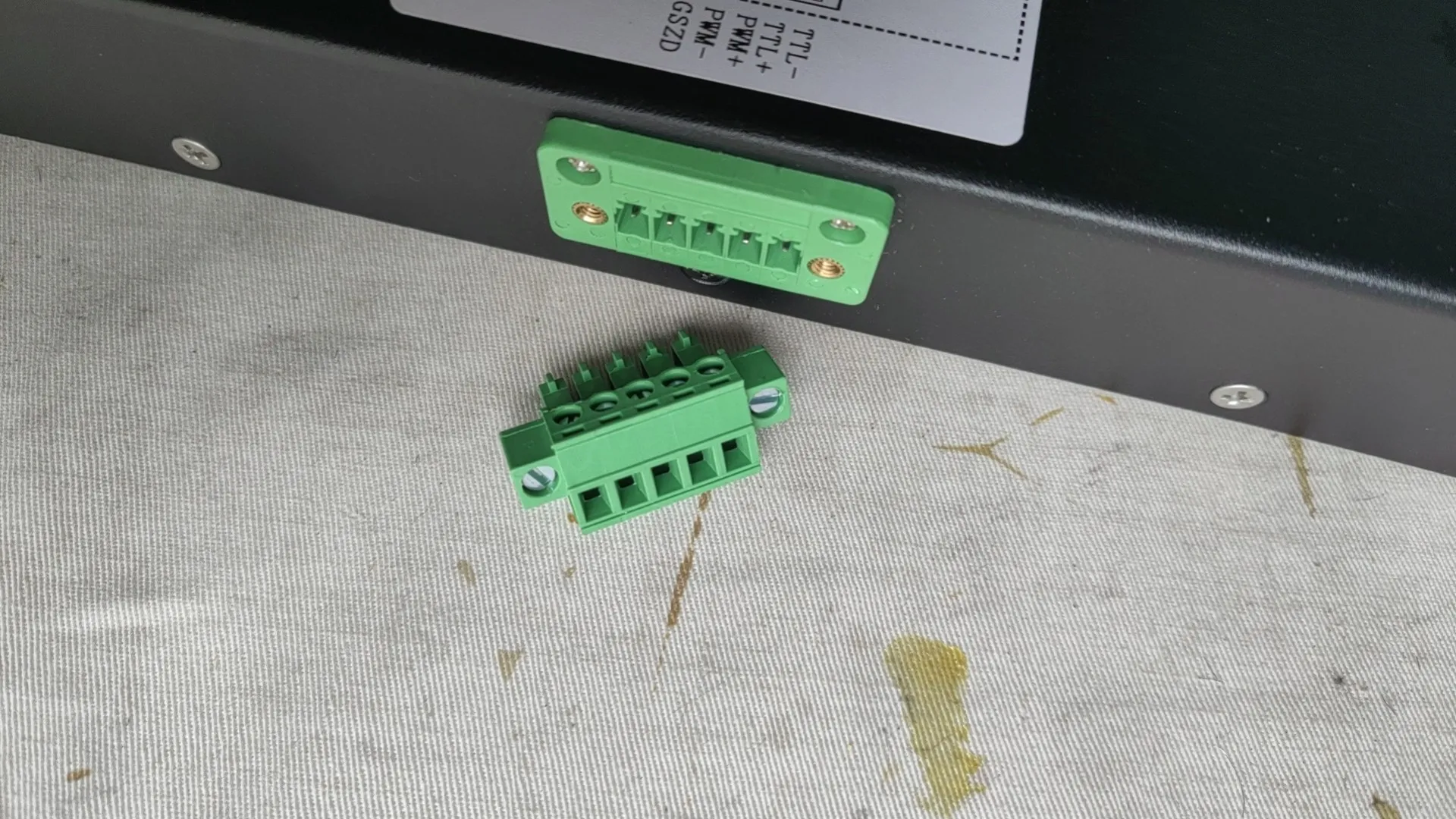

• Connection Interface: Screw terminal blocks for secure wiring

• Mounting: Standard industrial mounting points

Control Logic:

• Activation Requirements: All three conditions must be met:

  1. Positive voltage applied to ON/OFF terminal

  2. Frequency signal (or 0-10V voltage) applied to PWM+

  3. Proper ground connection established via GND terminal

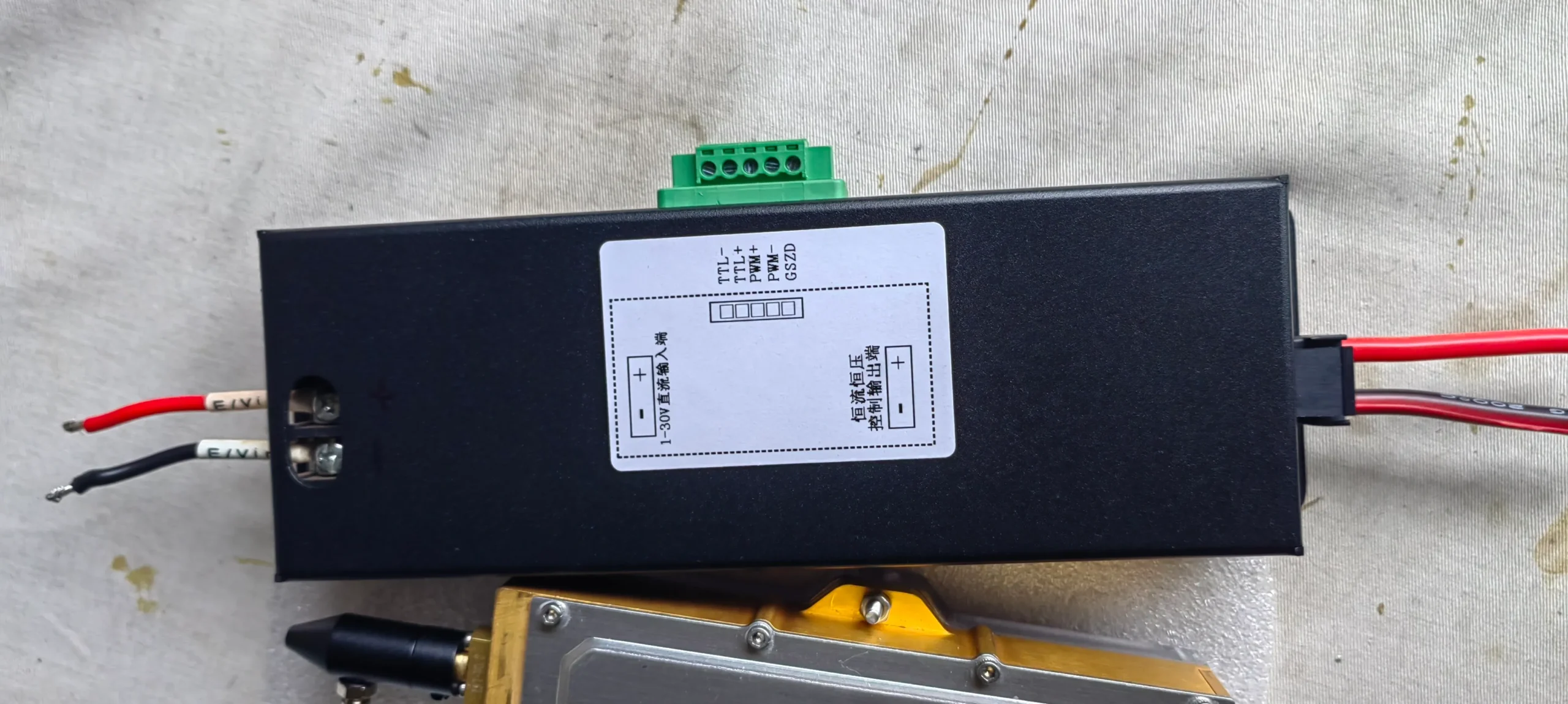

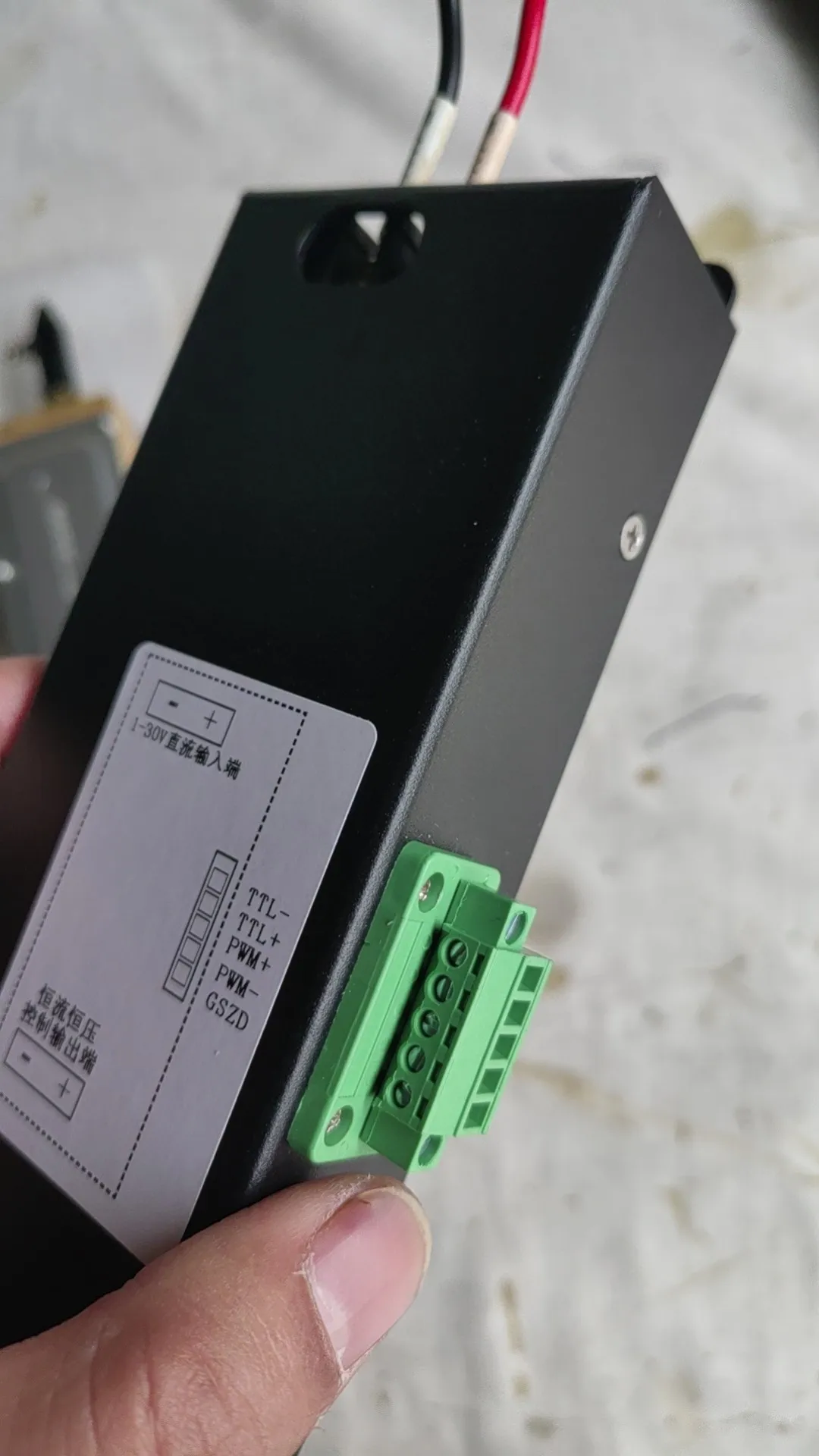

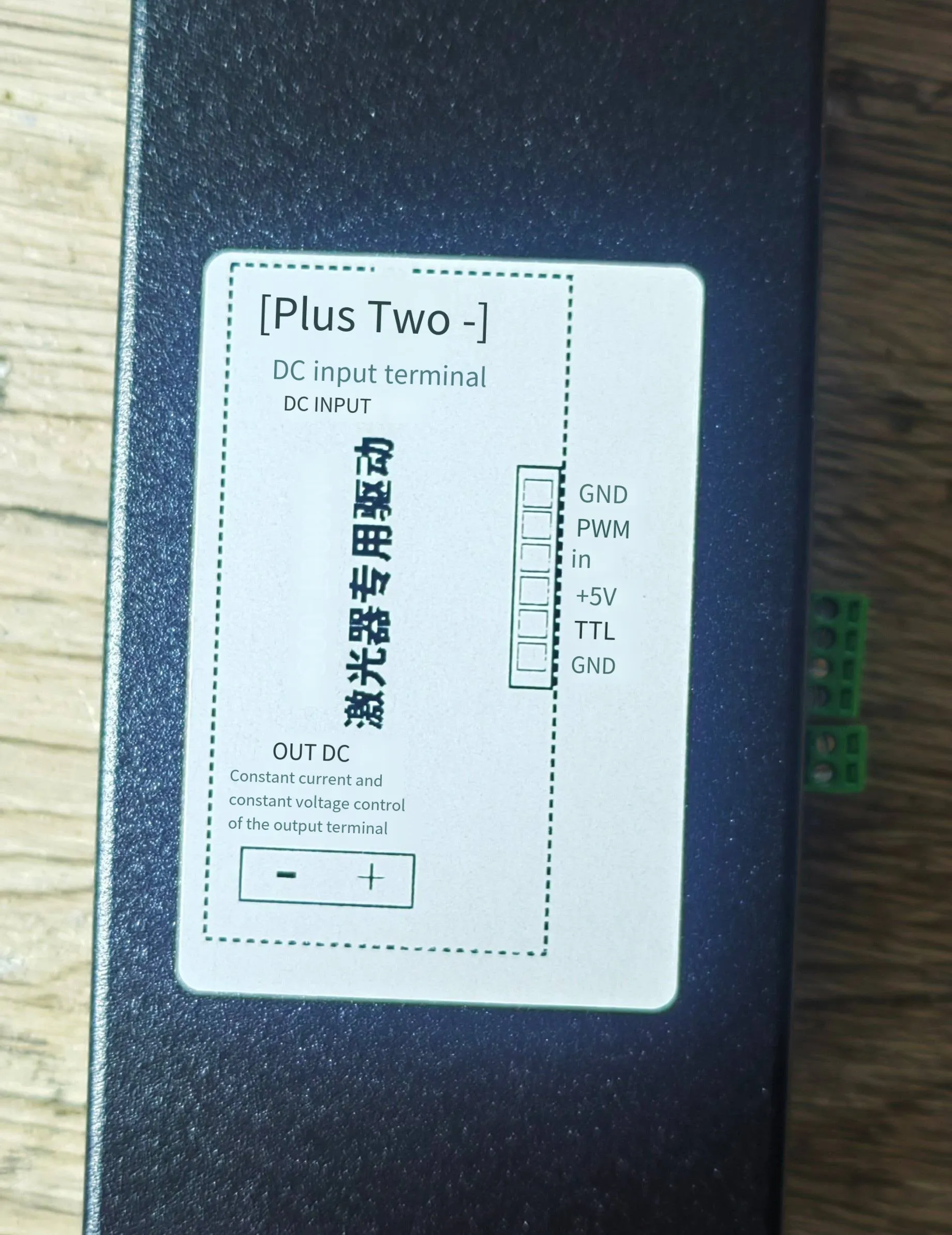

• Signal Terminals:

  • ON/OFF: Switching control (positive = ON)

  • PWM+: PWM signal input (0-10V analog or frequency signal)

  • PWM-: Common with GND

  • GND: System ground

  • GSZD: Pre-set signal terminal (leave floating/unconnected)

SKU Details

• SKU-DRV-130W: Dedicated driver module for 130W laser systems

• SKU-DRV-260W: Dedicated driver module for 260W laser systems

• SKU-DRV-500-1000W: High-power driver module for 500-1000W laser systems

Applications

• Laser cutting machine power system upgrades

• Laser engraving system modifications and enhancements

• DIY semiconductor laser system construction

• Industrial laser system maintenance and retrofitting

• Research and development laser setups

• Educational laser technology projects

Integration & Wiring

• Comprehensive wiring diagrams and technical support available

• Direct connection to laser positive/negative terminals

• Compatible with most laser control software and hardware interfaces

• Designed for integration with existing CO₂ laser machine electronics

• Water-cooling system required for optimal thermal management

Package Includes

• 1 × Laser Driver Module (specify power rating when ordering)

• Technical wiring reference guide

• Basic installation instructions

Customer Testimonials

“Extremely powerful — instantly vaporized through 1cm thick wood. Works perfectly with constant current controllers. Highly recommended for serious applications. Technical support from the seller is excellent.” – Verified Purchaser, October 2025

Performance Notes

• Enables significant cost reduction when converting CO₂ laser systems to semiconductor laser sources

• Provides stable, precise power control for consistent laser output

• Robust construction ensures reliable operation in workshop and industrial environments

• Designed for users with technical expertise in laser system integration

Compatibility

• Works with most PWM signal generators and laser control boards

• Compatible with standard water-cooling systems using acrylic channels

• Suitable for integration with RAYCUS, CREATOR, IPG, and similar laser pump sources

For wiring diagrams, technical integration support, or compatibility verification, please refer to the provided documentation or contact our technical support team. Note: This product is intended for users with experience in laser system modification and electronics integration.
