Description

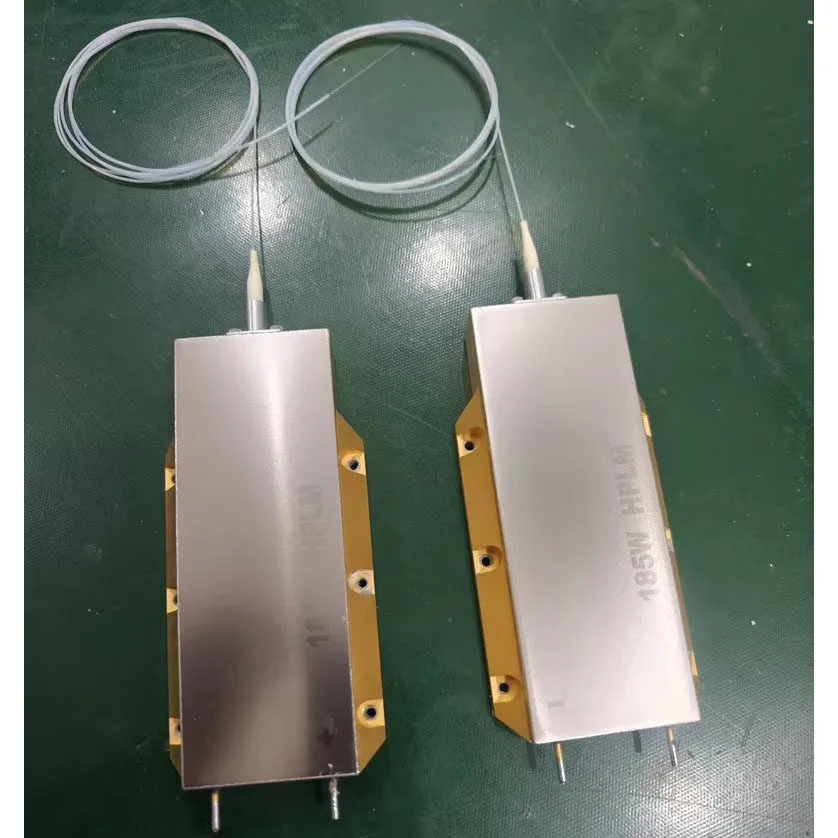

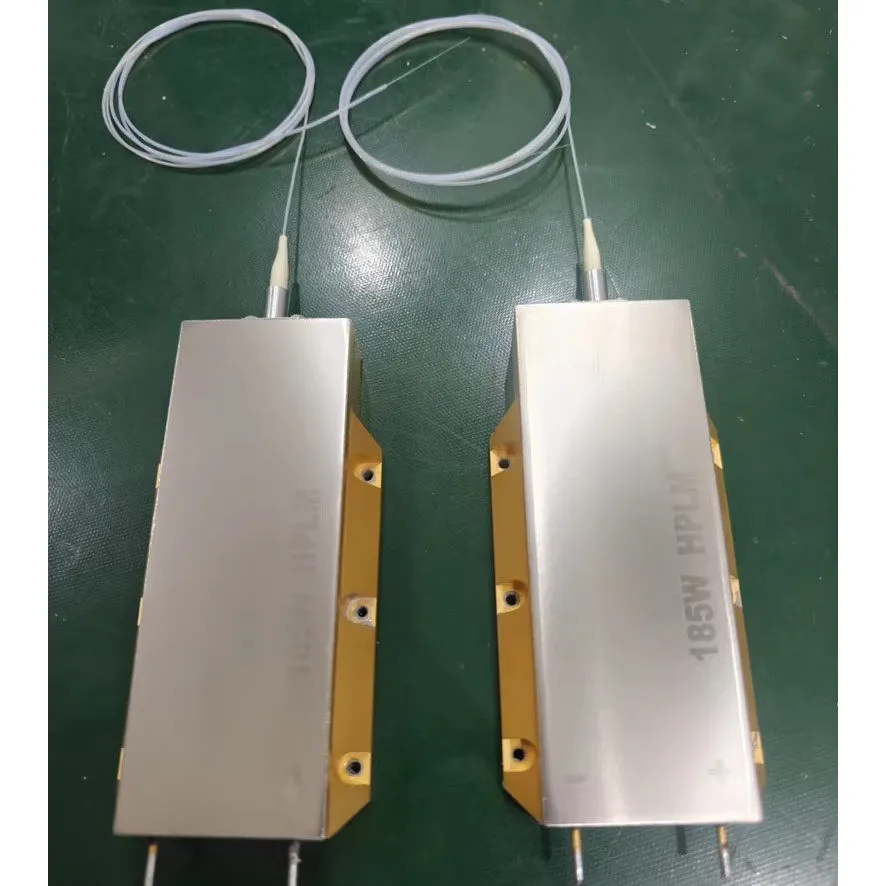

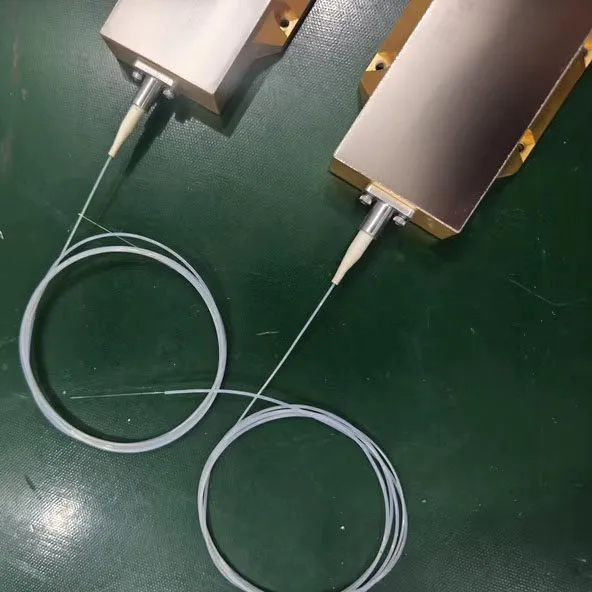

This 185W fiber laser pump diode module is designed for high-power industrial applications including laser ignition, rust removal, precision welding, and high-speed marking. It delivers stable, full-power output and comes with a rugged armored fiber cable for durability in harsh environments. With limited stock available, it is an ideal choice for maintenance teams, laser system integrators, and OEM manufacturers seeking a reliable, cost-effective replacement or upgrade.
📊 Key Features & Specifications
- Power Output: 185W (full power verified)
- Fiber Configuration:
- Length: 1m+ armored protective fiber
- Core Diameter: Optimized for 1–2mm spot size
- Effective Focus Range: 10–35cm (customizable on request)
- Interface Options:
- Bare fiber with armored protection
- SMA905 quick-connect connector (for direct lens pairing)
- Optical Performance:
- Spot size: 1–2mm at optimal focus
- Beam divergence: Gradual expansion beyond 35cm focus distance
- Mechanical Design: Heavy-duty aluminum heat sink with gold-plated base for superior thermal management
- Condition: Original pulled unit, tested for full power output and stability
🛠️ SKU Details
| SKU Code | Configuration | Quantity |
|---|---|---|
| LP-185W-ARMORED | 185W, armored protective fiber, bare output | In stock (limited) |
| LP-185W-SMA905 | 185W, armored protective fiber, SMA905 connector | In stock (limited) |
| LP-185W-OPTIC | 185W + focus lens (10–35cm adjustable) | Made-to-order |
🎯 Applications
- Laser ignition for industrial burners and engines
- Laser cleaning for rust, paint, and oxide removal
- Precision laser welding of metals and composites
- High-speed laser marking on metals, plastics, and ceramics
- Custom laser system integration for research and production
- OEM replacement for fiber laser cutting/welding systems
💡 Why Choose Our 185W Pump Module?
- Full Power Verified: Each module is tested to confirm 185W output for consistent performance
- Durable Armored Fiber: Protects against bending and damage in industrial environments
- Flexible Interfaces: Choose between bare fiber or SMA905 connector to match your system
- Custom Focus Options: Focus lens can be tailored to 10–35cm range for specific applications
- Limited Stock Availability: First-come, first-served pricing with fast FedEx shipping
- Technical Support: Our team provides guidance on lens pairing and system integration
📦 Package Includes
1 x 185W Fiber Laser Pump Diode Module (as per your SKU selection)
1 x Armored protective fiber cable (1m+)
1 x Anti-static packaging for safe handling
1 x Test report confirming full power output
⚠️ Important Notes
- Limited Stock: This is a limited-run product with low inventory. Orders are processed on a first-come, first-served basis.
- Customization Required: For SMA905 connector setups, a compatible focus lens (with “concave” SMA905 interface) must be purchased separately. Please provide wavelength, core diameter, and power specs to your lens supplier for optimal pairing.
- Shipping: FedEx shipping is available; delivery costs are borne by the customer.
- Non-Returnable Policy: This is a precision laser component, sold as-is. No returns or exchanges are accepted after delivery.
