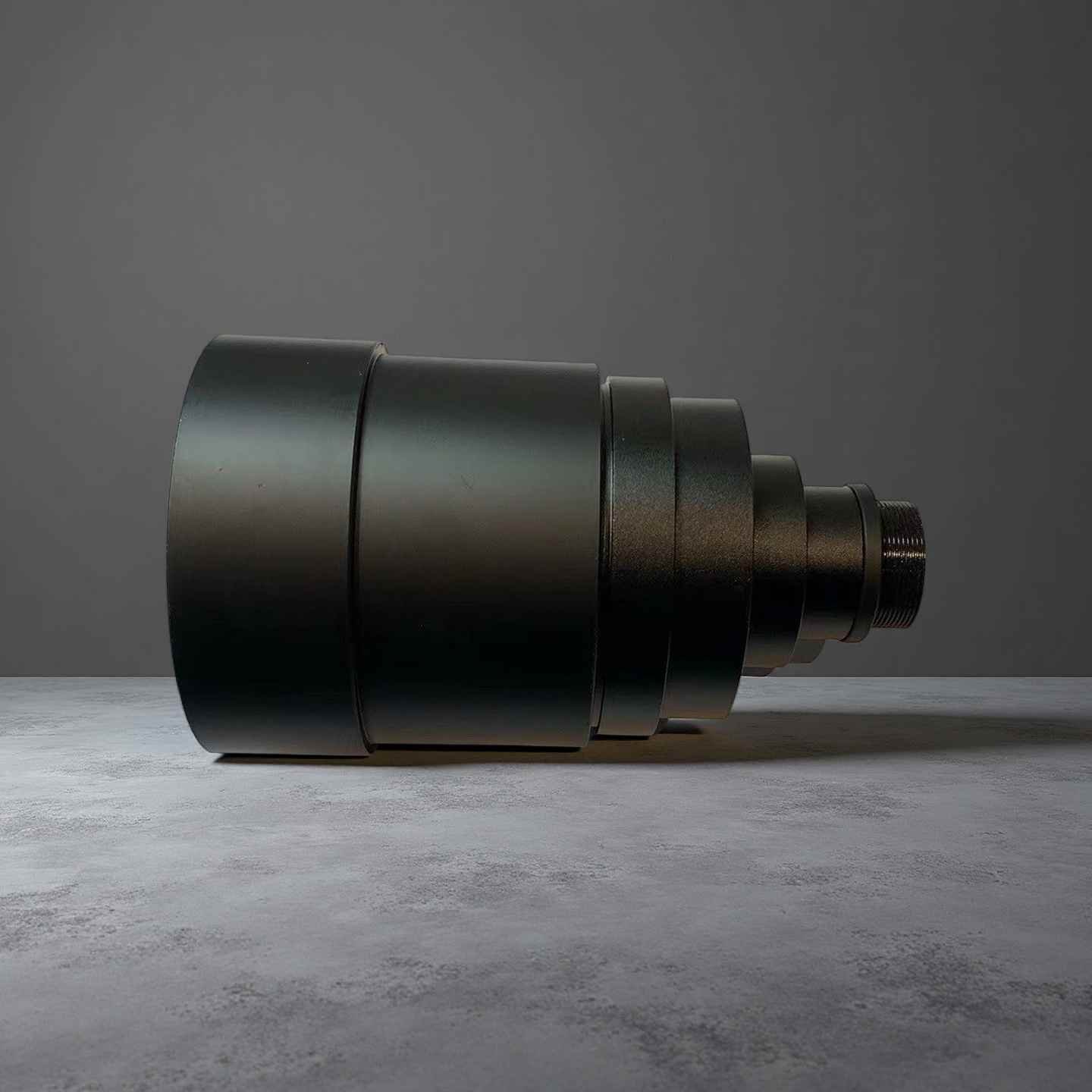

1550nm wavelength laser beam expander 20x

1. Primary Series Name:
IR-BeamExpand D-Series 1550nm Laser Beam Expanders

2. Model Numbering Convention:
Clear “Series-Magnification” structure.

Model Examples:

• IR-BeamExpand D-5X

• IR-BeamExpand D-10X

• IR-BeamExpand D-20X

Product Detail Page Framework

1. Core Headline

“IR-BeamExpand D-Series: High-Magnification Precision for 1550nm Applications”
Engineered for demanding long-range and high-precision applications, this D-Series delivers exceptional 20X beam expansion at 1550nm. With 5X and 10X models shipping within 48 hours, it’s ready to enhance your LIDAR, telecommunications, or measurement systems.

2. Key Features

• High-Magnification Performance

  • Icon: 🔍

  • Text: Achieves 20X magnification for applications requiring significant beam expansion and superior collimation over long distances.

• Rapid Deployment Options

  • Icon: ⚡

  • Text: 5X and 10X models ship within 48 hours, providing fast solutions for prototyping and urgent project requirements.

• Large Output Capability

  • Icon: 📡

  • Text: Generates a substantial 60mm output beam (using 62mm lenses), enabling excellent beam quality and low divergence for long-range transmission.

• 1550nm Wavelength Optimized

  • Icon: 🎯

  • Text: Precisely calibrated for the 1550nm band, ensuring maximum transmission efficiency and beam integrity for eye-safe laser systems.

3. Detailed Specifications

4. Application Scenarios

• Long-Range LIDAR Systems

  • Caption: “The high 20X magnification significantly reduces beam divergence, extending the effective range and resolution of topographic and atmospheric LIDAR systems.”

• Free-Space Optical Communication

  • Caption: “Maintains signal integrity over extended distances in point-to-point communication links, crucial for high-bandwidth data transmission.”

• Remote Sensing & Measurement

  • Caption: “Ideal for environmental monitoring and precision measurement applications where maintaining a small spot size at long working distances is essential.”

5. Selection & Ordering Guide

Title: Select Your 1550nm High-Magnification Solution

Guide:

1. Choose Magnification: Select from 5X or 10X for 48-hour delivery, or 15X/20X for high-magnification needs

2. Verify Input Compatibility: Confirm your beam diameter is within the 8mm maximum input specification

3. Consider Output Requirements: Ensure the 60mm output beam diameter meets your system needs

Call to Action:

High-magnification 1550nm solutions available! Order 5X or 10X models for 48-hour shipment. Contact our technical team for 15X/20X configurations or custom magnification requirements.
