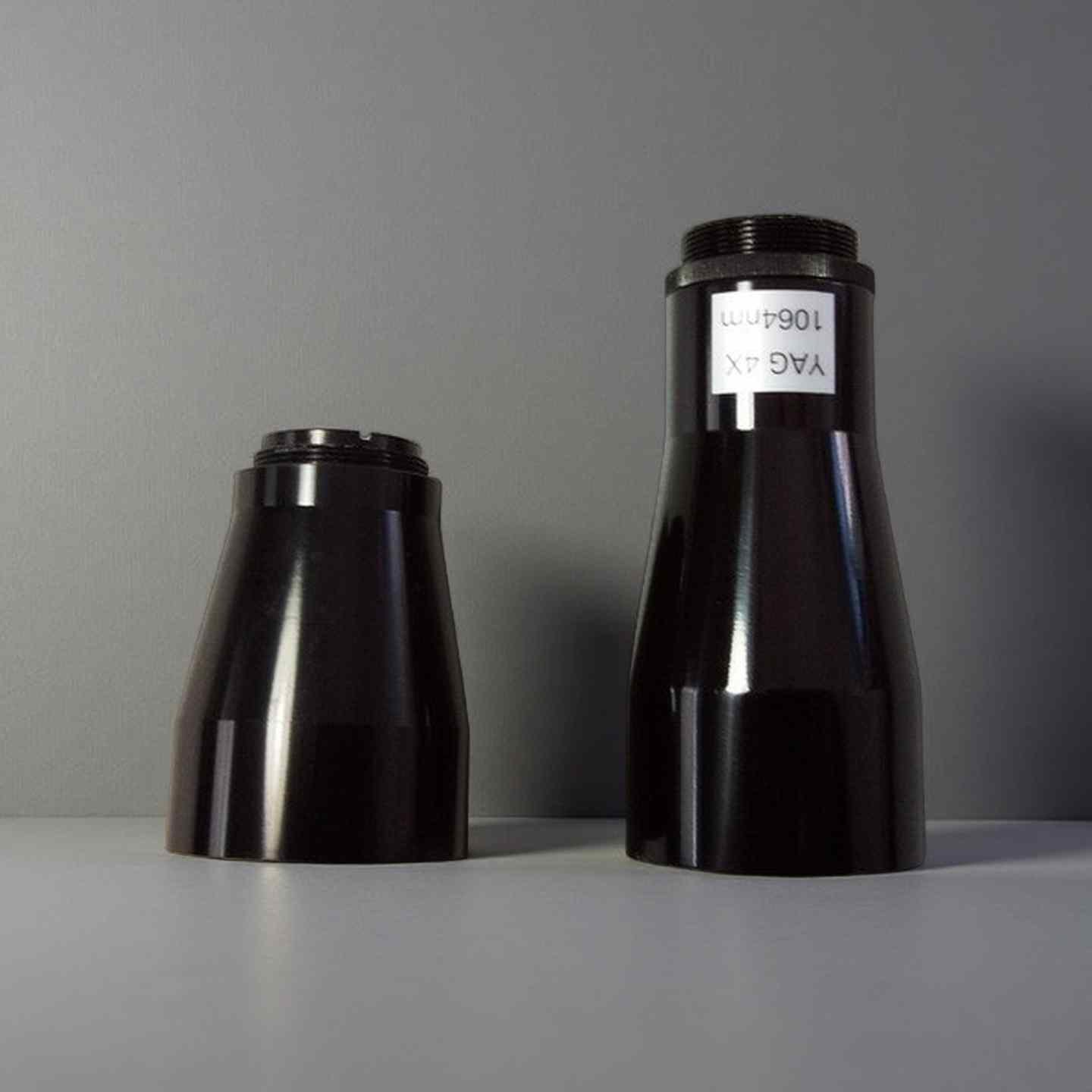

1064nm high-power quartz laser beam expanding mirror – Type A (available in 3x/4x/5x versions)

PowerExpand A-Series High-Power 1064nm Quartz Beam Expanders

2. Model Numbering Convention:
Clear “Series-Magnification” structure.

Model Examples:

• PowerExpand A-3X (3X Magnification)

• PowerExpand A-4X (4X Magnification)

• PowerExpand A-5X (5X Magnification)

Product Detail Page Framework

1. Core Headline

“PowerExpand A-Series: Engineered for Demanding High-Power 1064nm Applications”
Specifically built with fused quartz optics to withstand intense laser power. With 3X, 4X, and 5X magnifications readily available, this A-Series beam expander delivers reliable performance where standard components fail.

2. Key Features

• High-Power Quartz Optics

  • Icon: 💎

  • Text: Features fused quartz input lenses specifically selected for high LIDT (Laser Induced Damage Threshold), ensuring longevity and stability under demanding 1064nm high-power laser operation.

• Optimized for 1064nm

  • Icon: 📍

  • Text: Precisely calibrated for the 1064nm wavelength, maximizing transmission and preserving beam quality for YAG, fiber, and other 1064nm laser systems.

• Immediate Availability

  • Icon: 🚀

  • Text: 3X, 4X, and 5X magnification models are in stock, providing quick solutions for urgent project integration and prototyping needs.

• Robust Optical Design

  • Icon: ⚙️

  • Text: Utilizes 16mm input and 30mm output lenses, efficiently handling input beams up to 12mm and delivering high-quality 28mm output beams for further processing.

3. Detailed Specifications

4. Application Scenarios

• Industrial Laser Welding & Cutting

  • Caption: “Essential for high-power welding and cutting systems, where standard beam expanders would quickly degrade under extreme power densities.”

• Additive Manufacturing

  • Caption: “Provides reliable beam expansion in metal 3D printing and cladding applications, ensuring consistent process quality over long durations.”

• Scientific Research & Development

  • Caption: “Ideal for R&D involving high-power 1064nm lasers, such as nonlinear optics experiments or material interaction studies.”

5. Selection & Ordering Guide

Title: Select Your High-Power Beam Expander

Guide:

1. Choose Magnification: Select from 3X, 4X, or 5X for immediate shipment

2. Verify Power Requirements: Confirm this quartz-based A-Series matches your laser’s power density specifications

3. Consider Custom Options: For other magnification needs (2X-20X), contact our support team

Call to Action:

High-power solutions in stock! Order 3X, 4X, or 5X magnifications today for rapid delivery. Contact our technical team for custom magnification requests or to discuss your specific high-power application requirements.
